Julia Sets and the Mandelbrot Set

Exercise Answers

1. (c) Here is what we find.

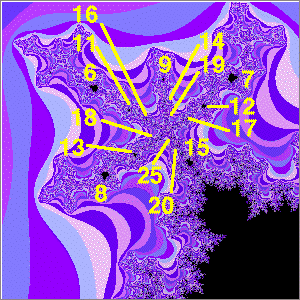

Proceeding clockwse from the spoke attaching the antenna to the body of the Mandelbrot set, we find

The largest midget on the first branch has cardioid with cycle number 8. Going toward the point where the antenna spokes meet, we find 13 and 18.

The largest midget on the second branch has cardioid with cycle number 6. Going toward the point where the antenna spokes meet, we find 11 and 16.

The largest midget on the third branch has cardioid with cycle number 9. Going toward the point where the antenna spokes meet, we find 14 and 19.

The largest midget on the fourth branch has cardioid with cycle number 7. Going toward the point where the antenna spokes meet, we find 12 and 17.

The largest midget on the the branch attaching the antenna to the body of the Mandelbrot set has cardioid with cycle number 15. Going toward the point where the antenna spokes meet, we find 20 and 25.

Patterns

Going along each spoke, the cycle numbers go up by 5, the period of the disc to which the antenna is attached.

The largest midgets on the spokes (excluding the one attaching the antenna to the body of the Mandelbrot set) have cycles 8 = 5 + 3, 6 = 5 + 1, 9 = 5 + 4, and 7 = 5 + 2.

The largest midget on the spokes attaching the antenna to the body of the Mandelbrot set has cycle 15 = 5*3.
